200W LED flood light with powerful LED light source

MOQ ：50 piece

Lead Time ：15 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : T/T,Western Union,Pay Pal

Departure Port : Shenzhen

Product details

Supply Ability

Supply Ability：50000 piecesWarranty(Year)：3 Year

Packaging & Delivery

Length：1000 cmWidth：360 cm
Height：264 cm
Packaging：1 piece

Product Specifications

Product Description

200W LED flood light

Product Appearance

specialty：

(1)Adopting integrated Chip as light source with high lighting efficiency80－100LM/W ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

(2)Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

(3)Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

(4)Wide Input Voltage from 100V~240VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.

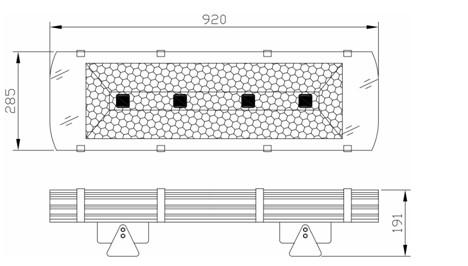

Shape Structure

Shell Material：Aluminum Alloy Shell Color：Black

Net Weight： 19Kg

Unit：mm ±2mm

Parameter

Input Voltage	AC100~240V	Color Rendering Index	Ra>70
Freqency Range	50~60Hz	Beam Angle	100°
Power Factor	>0.97	LED Reduction Rate	1~3% / 1,000Hrs
Power Efficiency	>92%	Color Temperature	2700~7000K
LED Working Voltage	DC30~36V	Working Temperature	-20℃~+45℃
LED Power	200W	IP Grade	IP65
Total Power	217W	Working Life-span	>35000H
Luminous Efficiency	80~100lm / W	Power line	VDE 3×1.0mm2
Connect wire	Brown→L Blue→N Yellow or Green→G

Diagram of degradation for Luminous

1,The data above has been got at a temperature of 25 celsius degree and taking 1000 hours running by a nonstop way.

2,Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.

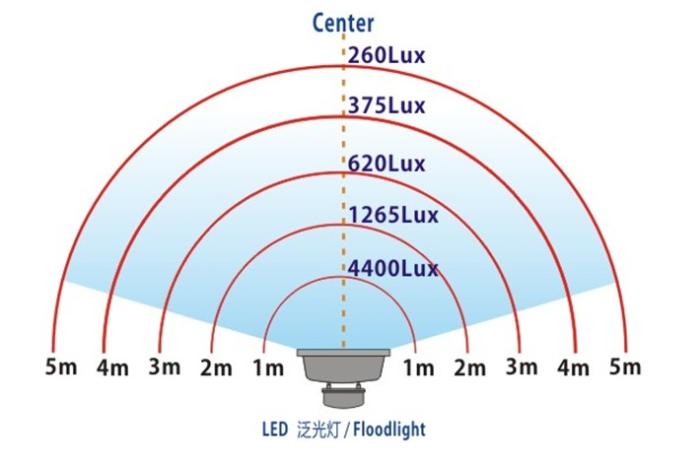

Photomatric Data

Illumination Distance/illuminance/Irradiated Area

Packing specification

Packing Dimension：（L）1000×(W) 360×(H) 264mm 1PC/CTN 21Kg

Using and installing instructions

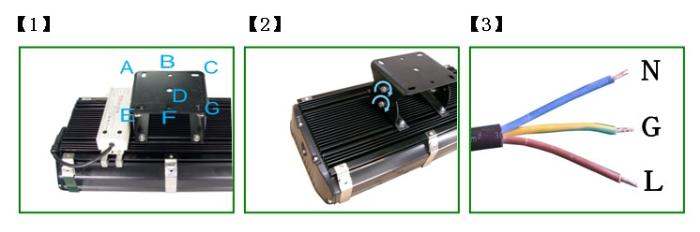

Installation Procedure

(1)As Picture No.2showed,fix the lamp to mounting surface with 3 screws.

(2)As Picture No.1 showed,unscrew the retaining screw,take down the fitting.

(3)As Picture No.3 showed, Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.

(4)Male Water joint, equip with 1 meter power wire.

(5)Female water joint,, can be connected to input end of lamp when the light has been produced.

(6)Besides of normal wire connecting way, it’s convenient to installation, uninstallation, maintenance with the special equipment.

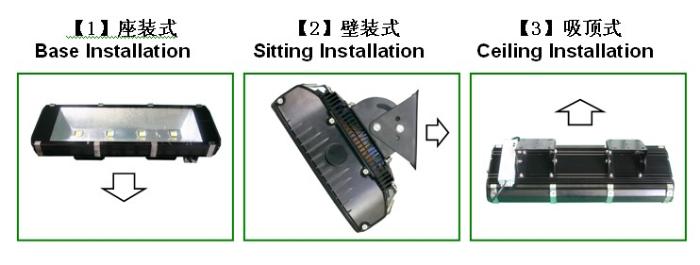

Mounting Method

Attentions：

(1)Only professional electrician can install the lamp, please check the lamp very carefully before installation.

(2)Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
