9W LED TUBE LIGHT  (Frosted)

【1】Product Appearance

 Specialty:

【1】To make the Earth more green and the sky more blue, please use LED lights. LED tube light without UV, mercury and other harmful materials, built-in wide voltage power supply, input voltage AC100-240V, frequency 50 / 60Hz, constant current output, low power consumption, start speed, quake-proof, which belongs to the twenty-first Century recognized green lighting products；

【2】 Traditional fluorescent lamps using an alternating current, so it will produce 100-120 times strobe per second. LED lamps directly converted alternating current to DC, without stroboscopic, can protect eyes；

【3】LED tube light has efficient conversion, can reduce the heating, so it is energy saving and has longer lifespan, which can completely replace traditional fluorescent lamp. The LED tube light power consumption is 1/3 below the traditional daylight lamp, and the lifespan is 10 times above traditional fluorescent lamp, can be used for a long time, and reduce maintain charge；

【4】Safe and stable quality, LED required safety voltage is below 36V, insulation shell and input 4KV, more confidence；

【5】Quiet and comfortable, suitable scope: Lighting housing, bus, supermarkets, shopping malls, office buildings, schools, factories and so on；

【2】Shape Structure

Shell Material：Aluminum Alloy+PC

 Shell Color：Silvery white

Weight：0.25Kg

【3】Parameter

【4】Diagram of degradation for Luminous

 1、The data above has been got at a temperature of 25 celsius degree and taking 1000 hours running by a nonstop way.

2、Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.

【5】Photomatric Data

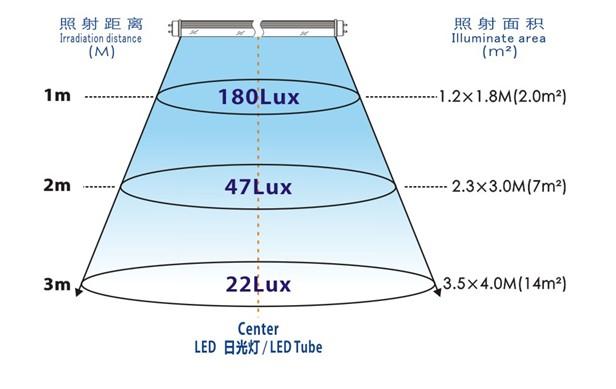

【6】Illumination Distance/illuminance/Irradiated Area

 【7】Packing specification

 Packing Dimension：L）663×(W)536×(H)548mm    100PC/CTN   30Kg

【8】Using and installing instructions

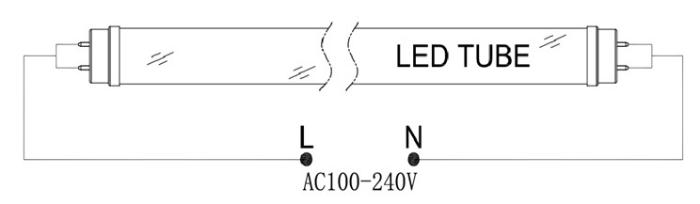

a. Conventional Installation

As the chart shows, Connect the tube with the working voltage 100V~240VAC(frequency 50/60 Hz) from two end caps, , it can work after switch on.

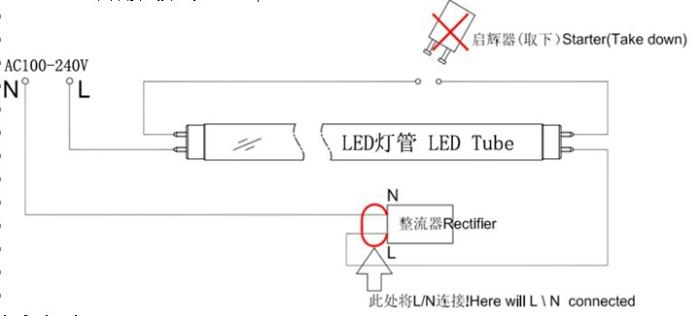

b. Replacing conventional fluorescent tube

Replace traditional fluorescent lamp, need to take the rev. Hui is divided, then a short circuit, then LED lamp ballast can load fixtures are normal use.

【1】Traditional fluorescent lamp by law

【2】LED by tube method

Attentions：

Installation only allow professional electrician operation, before you install please check lamps and lanterns for abnormal. Detailed

Please press the installation process with the product description, correct wiring way, forbidden charged operation
