Anti-explosion LED industrial light

MOQ ：50 piece

Lead Time ：15 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : T/T,Western Union,Pay Pal

Departure Port : Shenzhen

Product details

Supply Ability

Supply Ability：20000 piecesWarranty(Year)：2 Year

Packaging & Delivery

Length：41.2 cmWidth：31.2 cm
Height：47.8 cm
Packaging：1 piece

Product Specifications

Product Description

Explosion-proof LED high bay light,Anti-explosion LED high bay light,IP65 LED high bay lighting

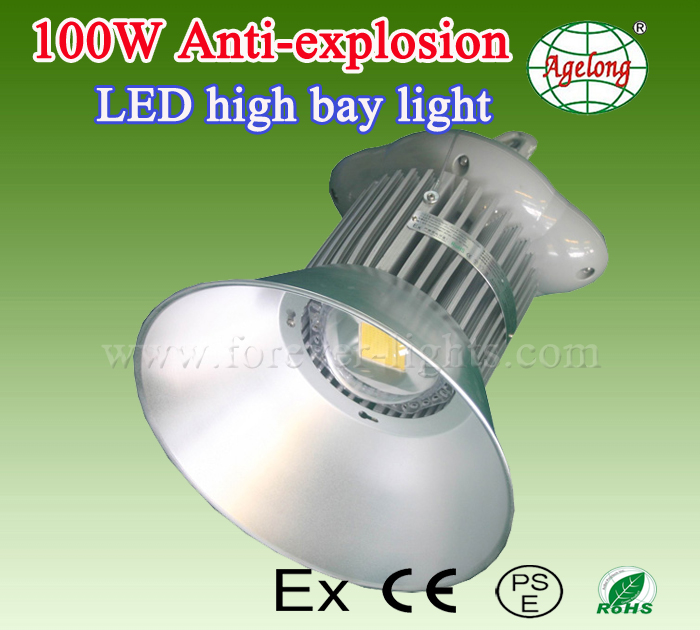

【1】Product Appearance

Specialty：

【1】Using high powerCOB LEDS, the lamp’s luminous efficiency can reach 80-100LM/W, and CRI>80Ra;

Fins heatingdissipation design enables the LED Tj within 85℃, and power up to 200W, lifespan more than 35,000hours; with protecting rate:IP65.

【2】The UFO high baylight is verified and certified according to standards for safety asbelow:GB3836.1-2010 Explosive atmospheres Part 1:Equipment General RequirementsGB3836.8-2003 Explosive atmospheres Part8:Electrical apparatusfor explosive gasatmos-pheres-Part8:Encapsulation “n” with Ex-marking ExnRⅡT4Gc.

【3】The light can beused in :Normally,a place in which an explosive atmosphere in the form ofexplosive dust or combustible fibre in mixture with air is likely to occurcontinuously or frequently in short time, or for long periods in normaloperation. According to the classification of explosion proof grade andapplication, the light can be use in Zone2.Surface temperature of item forsafety:≤135℃,such an arealighting site like factory,warehouse,except mine.

【2】Shape Structure

Shell Material：AluminumAlloy Shell Color：silver white

Net Weight：10.5 Kg Unit：mm ±2mm

【3】Explosion-proof Parameters

1）Explosion-proof（Grade）

ExnRⅡT4Gc

（1）Ex-Explosion-proof

（2）nR-Explosion proofform code of explosion proof electric equipment, nR for restrict breathing type,the others: D for explosion suppression type; IA for flameproof intrinsicallysafe type; MB for pouring type ... .;

（3）II-Explosion proofelectrical equipment is divided into type Ⅰ,Ⅱ,Ⅲclass; class I used for coalmine gas environment; class II, III used for other explosive gases electricequipments except coal mines which can easily generate gas.

（4）T4-equipmentexternal surface temperature range ( T4 means the temperature of any point onthe external surface of UFO explosion-proof mining lamp ≤ 135 ℃);

（5）Gc-Electricequipment protection level, and has a corresponding relationship to its usedplace, Gc level of protection for the general, and it can be used in explosivegas environment --Zone 2;

2）Hazardous area classification

Explosive substance	Area definition	Chinese standard	Foreign standards
Gas（ClassⅠ）	Under normal circumstances, the explosive gas mixture continuously or long time existence.	Zone 0	Div.1
	Under normal circumstances, the explosive gas mixture is likely to existent site	Zone 1	Div.1
	Under normal circumstances, the explosive gas mixture is not possible appear, Only in abnormal circumstances, occasionally or short time existed site ;	Zone 2	Div.2
Dust or fiber（ClassⅡ/ClassⅢ）	Under normal circumstances, explosive dust or combustible fibre and air mixture may be continuous, a short time frequent appear or long time existence.	Zone 10	Div.1
Dust or fiber（ClassⅡ/ClassⅢ）	Under normal circumstances, explosive dust or combustible fibre and air mixture can not appear, just in case of abnormal condition, occasionally or short time appears.	Zone 11	Div.2

3）Gas temperature group

Temperature category	Explosion proof electrical equipment surface temperature	Common explosive gas
T1	≤450℃	Methane、Toluene、Methyl ester、Ethane、Propane、Acetone、Acrylic acid、Benzene、Styrene、Carbon monoxide、Ethyl acetate、Acetic acid、Chlorobenzene、Methyl acetate、Ammonia、Acrylic ester、Two ether、City gas、Hydrogen、Water gas
T2	≤300℃	Methanol、Ethanol、Ethyl benzene、Propyl alcohol、Propylene、Butyl alcohol、Butane、Butyl acetate 、Amyl acetate、Cyclopentane、Butadiene、Epoxy propane、Ethylene、Acetylene
T3	≤200℃	Pentane、Amyl alcohol、Hexane、Hexyl alcohol、Heptane、Octane、Ring of ethanol、Turpentine oil、石Naphtha、 Petroleum (gasoline )、Fuel oil、Amyl alcohol four、Two ether、Acrolein、Hydrocarbon
T4	≤135℃	Acetaldehyde、Tetrafluoroethylene、Trimethylamine、Ethyl ether、Two ether
T5	≤100℃	Carbon disulfide
T6	≤85℃	Acid ethyl ester、Nitrous acid ethyl ester

This seriesexplosion-proof lamp temperature group is T4, according to the above standarddata, this series lamp can be used in the warehouse, workshop in the scope ofT1, T2, T3, T4, and related places that require explosion-proof lamp lighting canbe applied.

【4】Parameters

Input Voltage	AC100~240V	Color Rendering Index	Ra>80
Frequency Range	50~60Hz	Beam Angle	100°
Power Factor	>0.97	LED Reduction Rate	1~3% / 1,000Hrs
Power Efficiency	>90%	Color Temperature	2700~7000K
LED Working Voltage	DC30~36V	Working Temperature	-20℃~+45℃
LED Power	100W	IP Grade	IP65
Total Power	112W	Working Life-span	>35000H
Luminous Efficiency	80-100lm / W	Power line	VDE 3×1.5mm2
Connect wires	Brown→L /Blue→N Yellow or Green→G

【5】Luminous flux reduction diagram

1,The data abovewas testing at environment temperature of 25 celsius degree after 1000 hours constantlighting.

2, Theenvironment condition will affects luminous flux reduction. Luminous flux willdrops faster at a higher temprature or a longer lighting time.

【6】Photomatric Data

【7】IlluminationDistance/illuminance/Irradiated Area

【8】Packing specification

Body（L）412×(W)312×(H)478mm 1PC/CTN 12Kg

Reflector（L）432×(W)432×(H)534mm 10PCS/CTN 4.5Kg

【9】Using and installation instructions

Installation Procedures

(1)Pleasefirstly install the reflector properly on the heat sink, and screw down.

(2)Then screwdown the hoop into the top cap.

(3)Hang the bodylamp on the installation site.

(4)Please hang thechaining steel wire on another installation device.

(5)Connect LiveWire/Null Wire/Ground Wire to electric cable properly and switch on.

Attentions：

1.A licensedelectrician must undertake this installation. Please check the lamp carefully before installation，Forbidden toopen the lid when charged;

2.Please followup the installation procedures, make sure the screws been wrested very tightly,the wires been connected properly, as attached installation instruction.
